Fabrication Capabilities
Flat, tube, and 5-axis laser cutting, 60+ AWS-certified welders, and in-house pickling and passivation. Every process for stainless and specialty alloys under one roof in Oak Harbor, Ohio.
Under one roof
5
Laser systems
78
Welding bays
160,000 ft²
Under roof
14
Capabilities
Cutting & Forming
Flat, tube, and 5-axis laser cutting on stainless and specialty alloys, programmed from your CAD.
- Flat-bed · to 1 in
Stainless Steel Laser Cutting Services

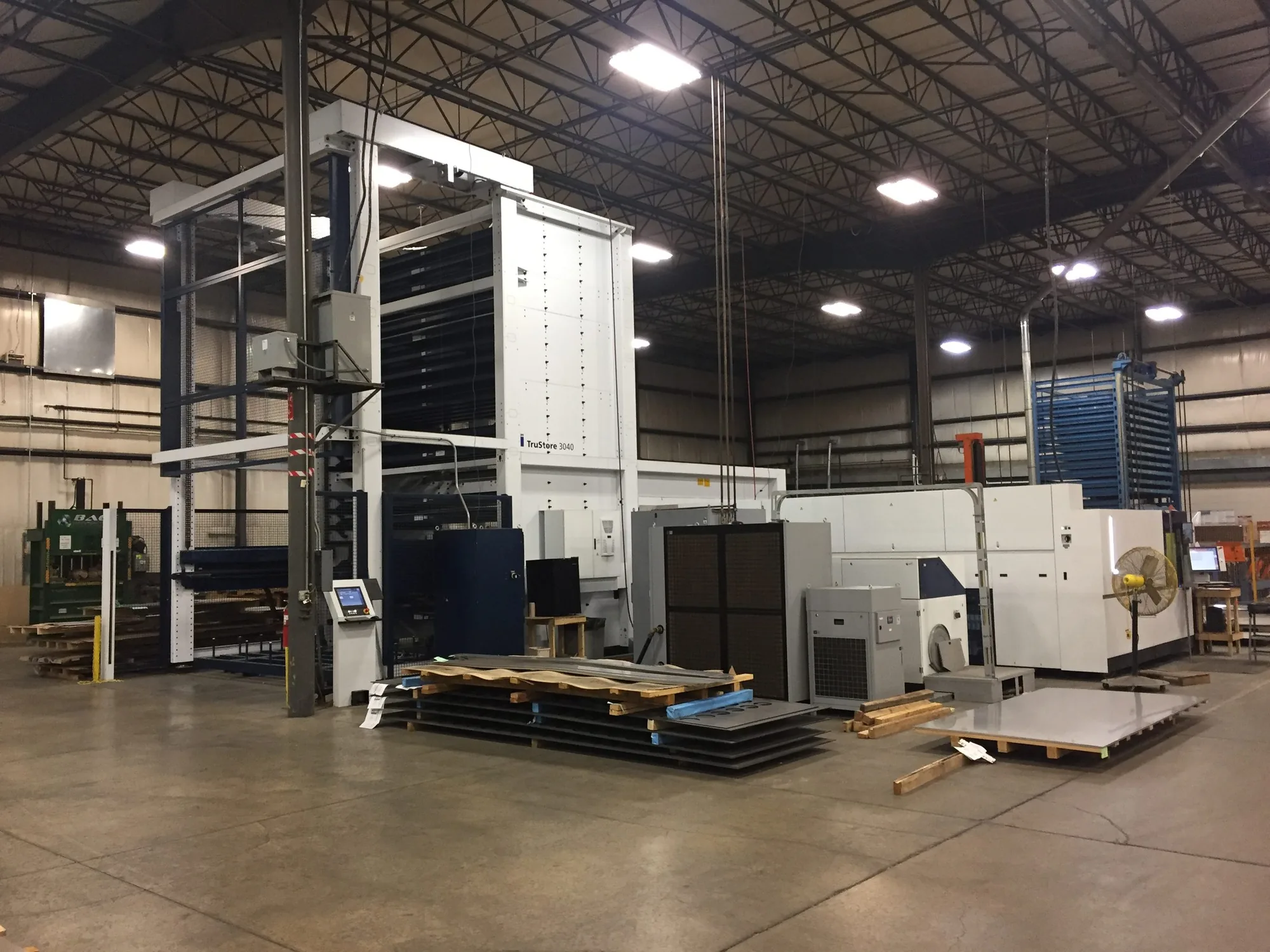

A 12 kW Trumpf fiber laser cuts stainless sheet and plate up to 1.25 inches thick, a 3,200 W CO2 cell runs production sheet behind it, and an 8-person engineering team programs every nest from your CAD.
View capability - Tube & profile
Tube Laser Cutting Services: Stainless Tube and Pipe, CAD to Parts
Round, square, rectangular, and structural tube and pipe cut on a Trumpf TruLaser Tube 7000, with copes, slots, tabs, and hole patterns finished in one cutting cycle. Send your tube files or CAD model and a stainless cutting estimator will quote the package.
View capability - 5-axis
3D Laser Cutting Services
A Prima Optimo 5-axis laser cuts bolt holes, ports, bevels, and trim lines into formed and welded parts up to 150 by 80 inches, at 0.005 inch accuracy, after weld shrinkage has already happened.
View capability - Press brake
Precision Bending and Forming Services
Five CNC press brakes, two Trumpf TruBend 5320s among them, form stainless from sheet gauges through heavy plate, with springback compensation set per grade and formed dimensions verified against your CAD model before parts move to welding.
View capability
Welding & Fabrication
60+ AWS-certified welders running ASME BPVC Section IX qualified procedures on stainless, duplex, and nickel alloys.
- P8 · P10H · P43 · P45 Primary
Stainless Steel Welding Services
60+ AWS-certified welders running ASME BPVC Section IX qualified procedures across nine processes (GTAW, GMAW, FCAW, SAW, robotic, K-TIG, and more) on stainless, duplex, and nickel alloys most shops won’t touch.
View capability - Autogenous · hybrid
Laser Welding Services
Laser welding puts a narrow, full-penetration seam on thin stainless with a fraction of the heat an arc process leaves behind. Less distortion, less straightening rework, and sheet assemblies that arrive at finishing flat.
View capability - CAD-programmed
Robotic Welding Services
Robotic GTAW and GMAW cells with laser vision seam tracking, multi-fixture setups, and family-of-parts programming: weld automation built for a job shop, where batches are small and parts change weekly.
View capability - Spool · root-to-cap
Stainless Steel Pipe Fabrication
Pipe spools cut on a tube laser to 10 inches in diameter, welded root to cap under ASME BPVC Section IX qualified procedures, and verified by in-house NDE before the package leaves Oak Harbor, Ohio.
View capability
Fabricated Products
Custom stainless tanks rolled in-house and laser-cut, robotic-welded stainless beams, girders, and structural profiles.
- One-piece shells
Custom Stainless Steel Tanks
Tank shells rolled in one piece to remove longitudinal seams, welded by 60+ AWS-certified welders under ASME BPVC Section IX qualified procedures, then pickled and passivated to ASTM A380 and A967 in our 55-foot booth before shipment.
View capability - Built-up sections
Custom Stainless Steel Beam Fabrication
When no mill rolls the stainless section your design calls for, we build it: web and flanges laser cut from plate on a 12 kW fiber laser, then stitch welded straight in robotic cells with laser vision seam tracking.
View capability
Finishing & Assembly
In-house ASTM A380 pickling and ASTM A967 passivation in a 55 x 20 x 20 ft spray booth, copper-sulfate verified.
- ASTM A380 / A967
Stainless Steel Pickling and Passivation
Welding leaves stainless with heat tint, free iron, and a chromium-depleted layer that fails service life if it ships out the door. We pickle and passivate to ASTM A380 and A967 in a 55 ft booth, then verify with copper-sulfate before the part leaves Oak Harbor.
View capability - Uniform matte
Stainless Steel Bead Blasting Services
Bead blasting gives stainless a uniform, non-directional matte finish that hides handling marks and leaves the surface in compression, run on dedicated stainless equipment with ASTM A380 pickling available under the same roof.
View capability - Kitting · Kanban
Mechanical Assembly Services
Our craftsmen carry your fabrication past the weld floor: shafts, bearings, drives, pneumatics, and customer hardware installed in dedicated assembly bays and verified under the same ISO 9001:2015 system that built the parts.
View capability - Witness points
Trial Fit and Functional Testing
Before your fabrication ships, we assemble it on our floor, verify it against your CAD model with a Leica AT960 laser tracker, and exercise the moving parts, so a fit problem costs hours in the shop instead of days in the field.
View capability
